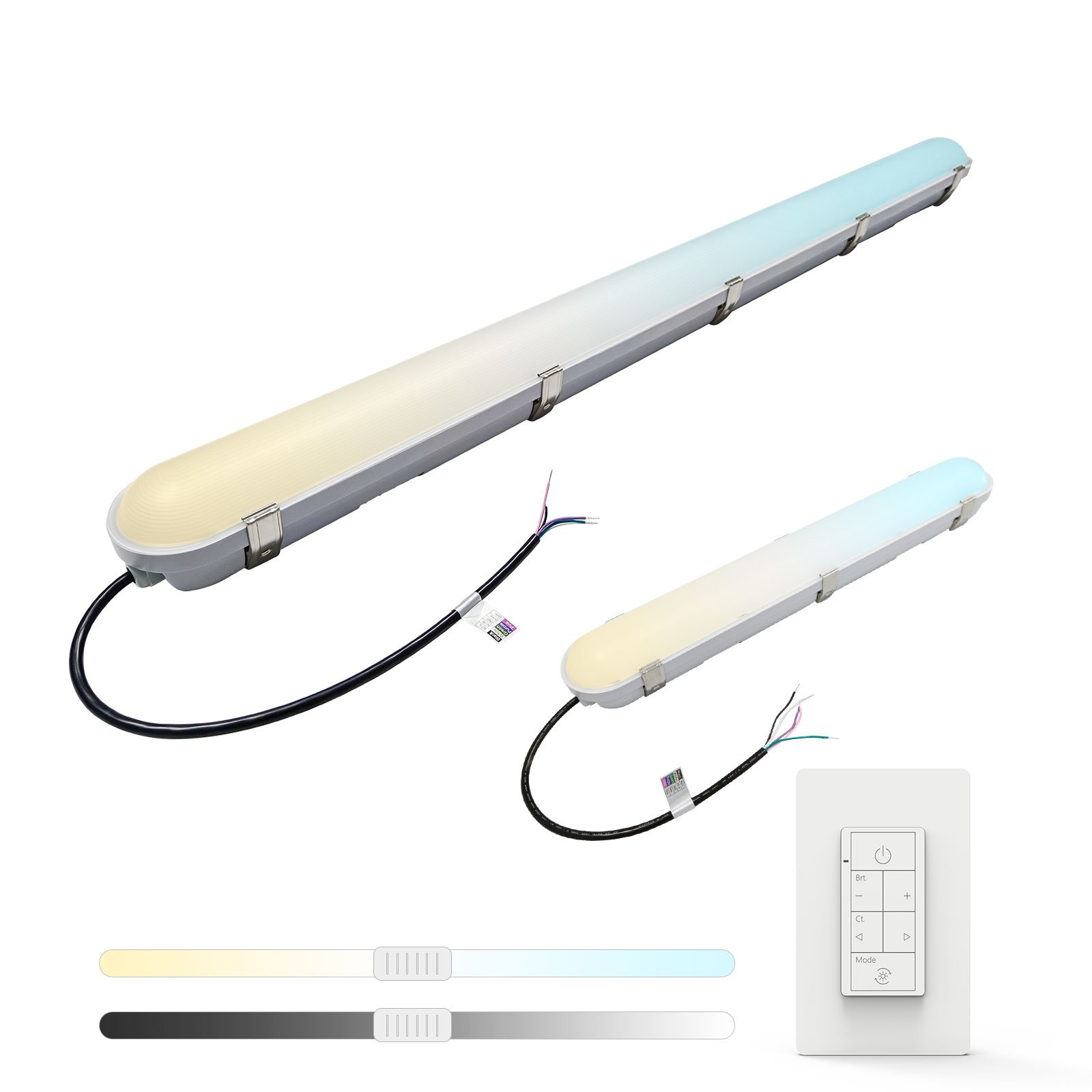

Vapor Tight Light 2FT | 4FT | 8FT | 125-130lm/W | CCT 2700K-6500K Linear adjustable | Wattage 0%-100% Adjustable

Vapor Tight LED Light is constructed with a durable, weatherproof polycarbonate housing and sealed against dust, fumes, and moisture with stainless steel latches. IP65 rated for waterproof usage in areas where vapor or moisture build-up is an issue. It can adjust 2700~6500K color temperature by PLC Smart Switch, and you also can switch night light mode to maintain 5% brightness and 2700K color, leisure mode to maintain 50% brightness and 3500K color, work mode to maintain 100% brightness and 5000K, by the PLC Smart Switch. Smart led light fixture is dimmable from 0%~100% Through the PLC Smart Switch.Soft and uniform light.Freely control the light brightness to relieve eye fatigue and save power. These are specifically engineered to with stand harsh conditions, and are Suitable for outdoor or indoor use, such as refrigeration areas, commercial kitchens, gas stations, car washes, or warehouses and more.

  • Wattage: 2FT: 25W | 4FT: 50W | 8FT: 100W (0%–100% Adjustable with PLC Smart Switch)
  • CCT: 4500K (2700K–6500K Smoothly Adjustable with PLC Smart Switch)
  • Efficiency: 125–130 lm/W
  • Input Voltage: 120–277V AC
  • Frequency Range: 50/60Hz
  • CRI: >80
  • Power Factor: >0.9
  • THD: ≤20%
  • IP Rating: IP65
  • Warranty: 5 Years
  • CONSTRUCTION: LED Vapor Tight fixture is built from impact-resistant plastic resins designed to keep moisture, dirt, and dust out, protecting interior wires and components.
  • ELECTRICAL: Equipped with a high-quality universal voltage driver (120V–277V) and long-lasting, high-efficiency LED packages.
  • OPTICAL SYSTEM: Precision-formed design reduces glare and improves light distribution.
  • PLC SMART SWITCH: Enables control of on/off functions, brightness (0%–100%), color temperature (2700K–6500K), and custom lighting modes.
  • LISTING: ETL, DLC Certified
  • WARRANTY: 5 Years Limited Warranty, rated for 50,000 hours (refer to warranty documentation for full details).
  • Size: 2FT (23.6” x 3.74” x 3.15” / 600mm x 95mm x 80mm) | 4FT (47.2” x 3.74” x 3.15” / 1200mm x 95mm x 80mm) | 8FT (94.49” x 3.74” x 3.31” / 2400mm x 95mm x 84mm)
  • Wattage: 2FT: 25W | 4FT: 50W | 8FT: 100W (0%-100% Adjustable with PLC Smart switch)
  • CCT: 4500K (2700K-6500K smoothly adjustable with PLC Smart switch)
  • Efficiency: 125-130lm/W
  • Input Voltage: 120-277V AC
  • Frequency Range: 50/60Hz
  • CRI: >80
  • PF: >0.9
  • THD: <=20%
  • Lifetime: 50,000 hours
  • Lumens: 3250-6250lm
  • Beam Angle: 120°
  • Certifications: ETL / DLC
  • IP Rating: IP65
  • Warranty: 5 Years
  • Working Temperature: -4°F to 113°F (-20°C to 45°C)
  • Model: PLC Smart Switch – JL-PLC400W-120 | JL-PLC800W-120 | JL-PLC1200W-120

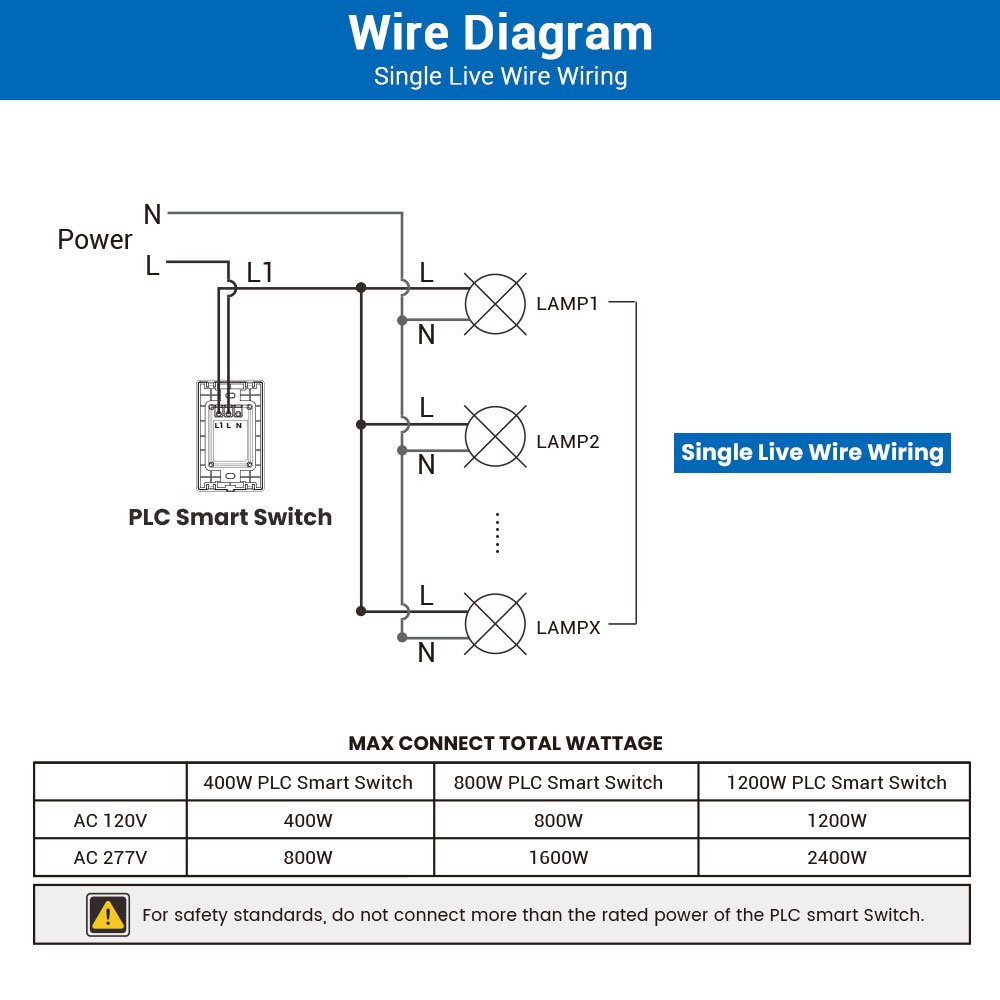

  • Wiring: Single Pole
  • Rating: 120-277V AC 50/60Hz
  • Control: Touch-Tone
  • Maximum Load: ≤400W | ≤800W | ≤1200W
  • Wire Wiring: Neutral / Single Live
  • Dimensions: 2.76″ x 4.53″ x 1.43″
  • Material: PC (Flame Retardant Material)
  • Working Temperature: -20℃ ~ 40℃
📄 Specs Sheet
