T8 Integrated Tube Light 1ft 2ft 3ft 4ft 8ft | 125lm/W | CCT 2700K-6500K Linear adjustable | Wattage 0%-100% Adjustable

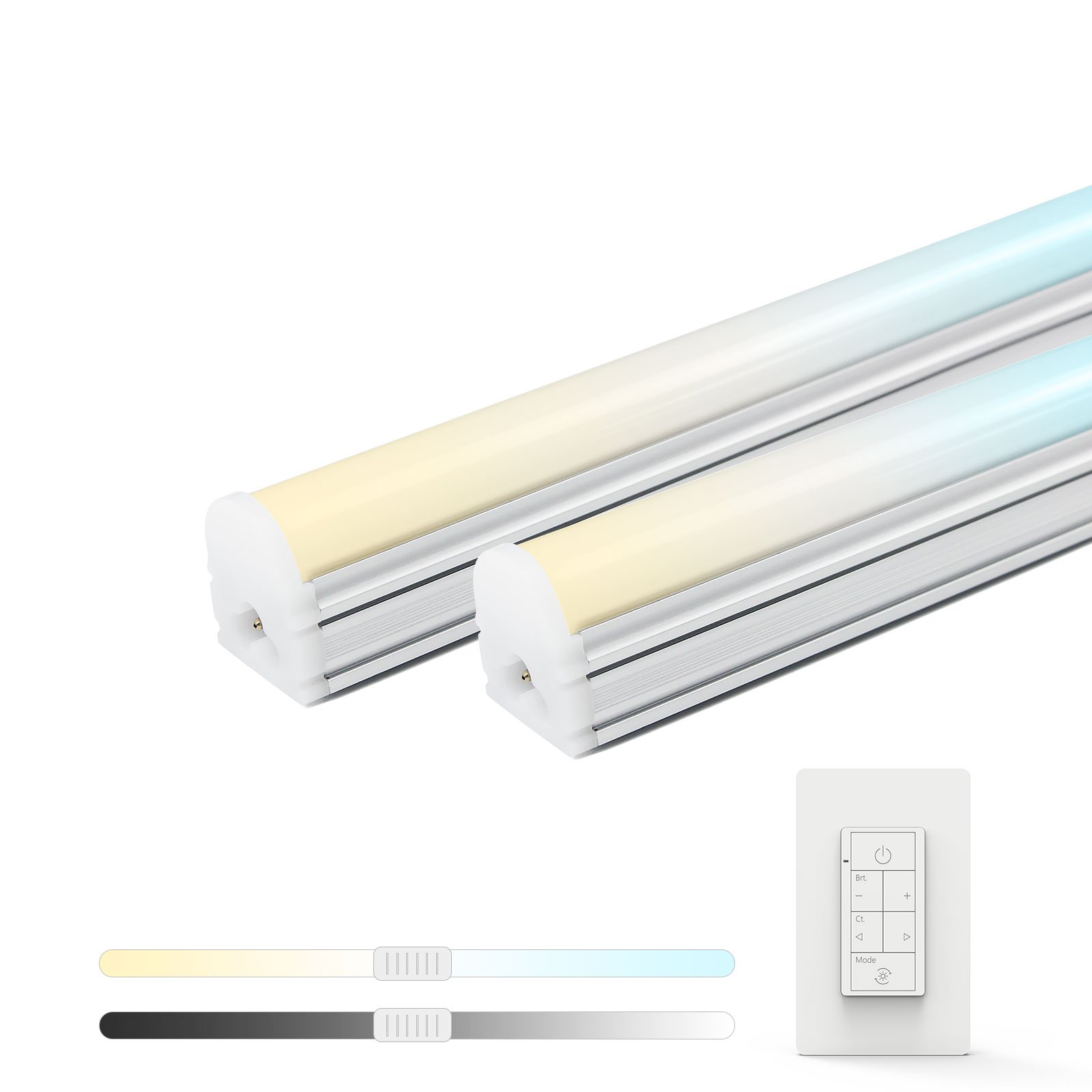

The T8 Integrated LED Tube is a premium quality light fixture that’s suitable for different sized areas. Use the linkable connectors or small connectors to daisy chain multiple units together. Installation is very simple. Use the mounting clips to install as a standalone fixture or suspend from the ceiling. It can adjust 2700~6500K color temperature by PLC Smart Switch, and you also can switch night light mode to maintain 5% brightness and 2700K color, leisure mode to maintain 50% brightness and 3500K color, work mode to maintain 100% brightness and 5000K, by the PLC Smart Switch. It ideal for creating a romantic or relaxed ambiance. It also has a memory function, so you don’t need to repeatedly set your favorite color temperature. Smart led ceiling light fixture is dimmable from 0%~100% Through the PLC Smart Switch.Soft and uniform light.Freely control the light brightness to relieve eye fatigue and save power. It is an excellent alternative for lighting up show areas, workbenches, offices, stations, attics, barns, garages, storage areas, homes, and more.

  • Wattage: 1FT: 8W | 2FT: 15W | 3FT: 22W | 4FT: 30W | 8FT: 60W (0%-100% Adjustable with PLC Smart switch)
  • CCT: 4500K (2700K–6500K smoothly adjustable with PLC Smart switch)
  • Efficiency: 125 lm/W
  • Input Voltage: 120–277V AC
  • Frequency Range: 50/60Hz
  • CRI: >80
  • Power Factor (PF): >0.9
  • Total Harmonic Distortion (THD): ≤20%
  • IP Rating: IP20
  • Warranty: 5 Years
  • CONSTRUCTION: PC + Aluminum | T8 Integrated LED Tubes Seamless
  • ELECTRICAL: Runs on 120–277V line voltage

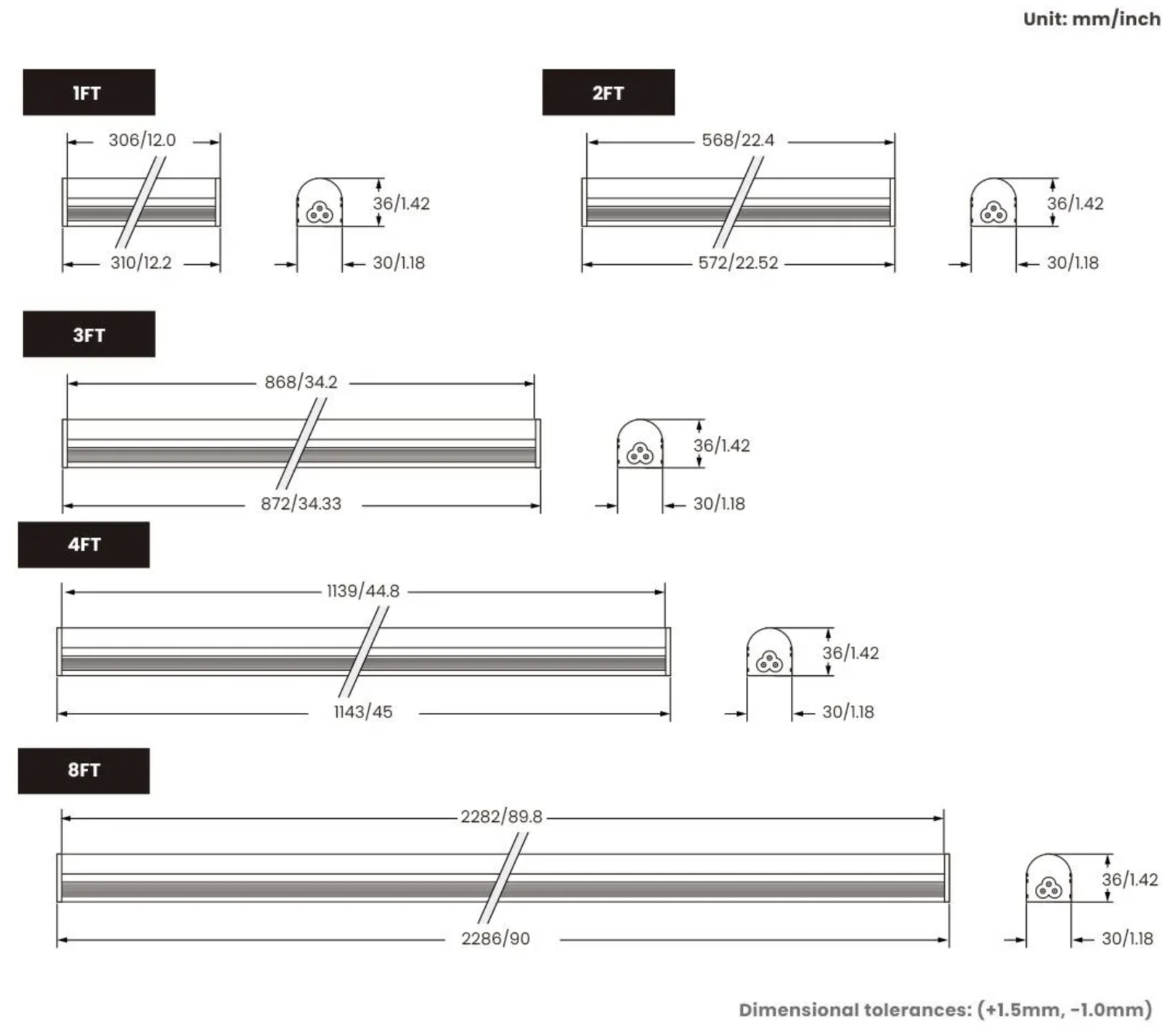

  • Size: 1FT (12.2” x 1.18” x 1.42”), 2FT (22.52” x 1.18” x 1.42”), 3FT (34.33” x 1.18” x 1.42”), 4FT (44.96” x 1.18” x 1.42”), 8FT (89.92” x 1.18” x 1.42”)

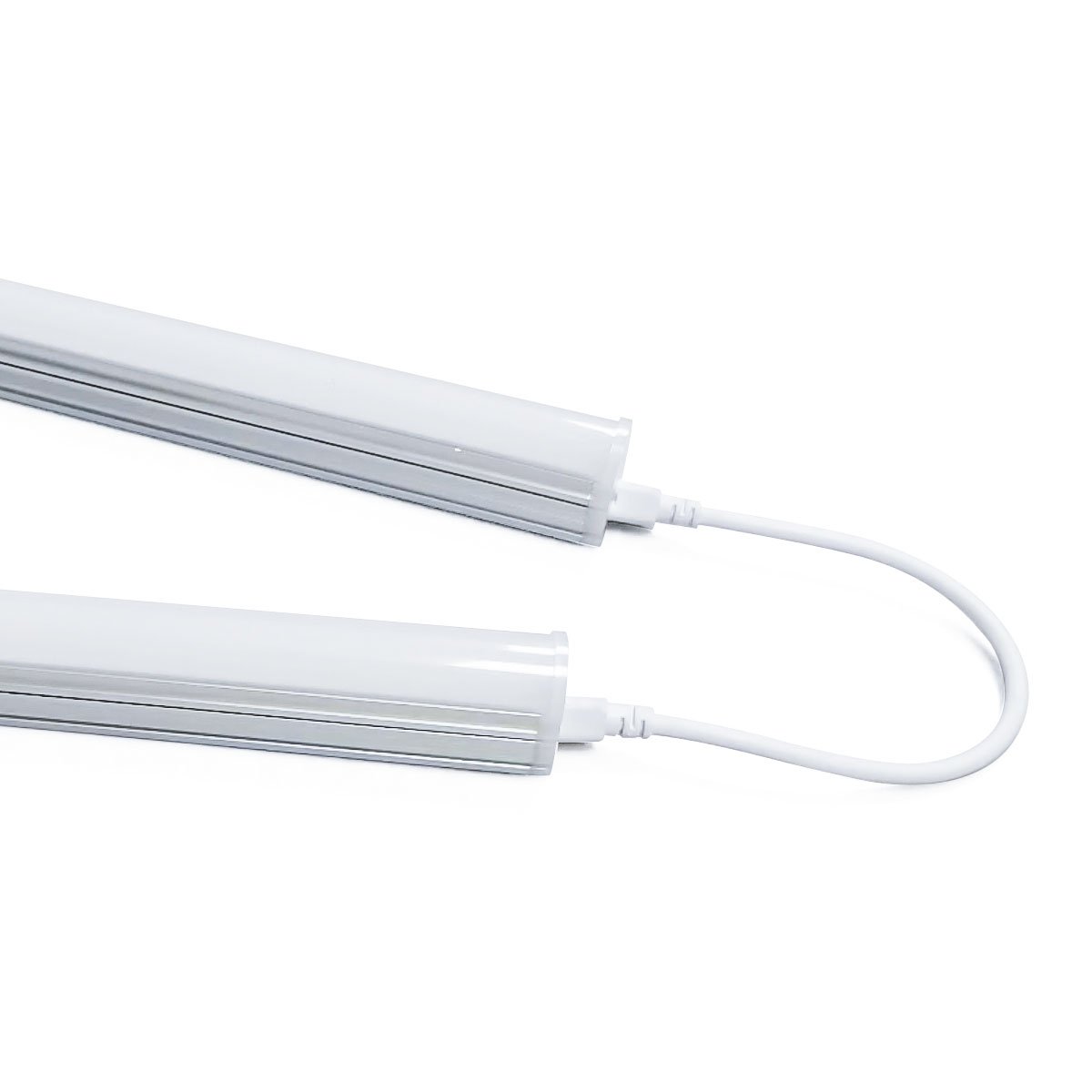

  • LINKABLE: Allows multiple tube lights to be connected for customized lighting arrangements and uniform illumination across large areas.
  • EASY INSTALLATION: No ballast required. Simple connector-based setup with provided clips and screws, reducing maintenance and cost.
  • APPLICATIONS: Suitable for homes, offices, retail stores, garages, workshops, basements, and more.
  • PLC SMART SWITCH: Enables control of on/off functions, brightness (0%–100%), color temperature (2700K–6500K), and custom lighting modes.
  • LISTING: ETL, DLC, FCC
  • WARRANTY: 5 Years Limited Warranty, rated for 50,000 hours (Refer to warranty documentation for details)
  • Wattage: 1FT: 8W | 2FT: 15W | 3FT: 22W | 4FT: 30W | 8FT: 60W (0%-100% Adjustable with PLC Smart switch)
  • CCT: 4500K (2700K–6500K smoothly adjustable with PLC Smart switch)
  • Efficiency: 125 lm/W
  • Input Voltage: 120–277V AC
  • Frequency Range: 50/60Hz
  • Cover: Frosted / Clear
  • CRI: >80
  • Power Factor (PF): >0.95
  • Total Harmonic Distortion (THD): ≤20%
  • Lifetime: 50,000 hours
  • Beam Angle: 120°
  • Certifications: ETL, DLC, FCC
  • IP Rating: IP20
  • Warranty: 5 Years
  • Working Temperature: -4°F to 113°F (-20°C to 45°C)
  • Model: JL-PLC400W-120 | JL-PLC800W-120 | JL-PLC1200W-120

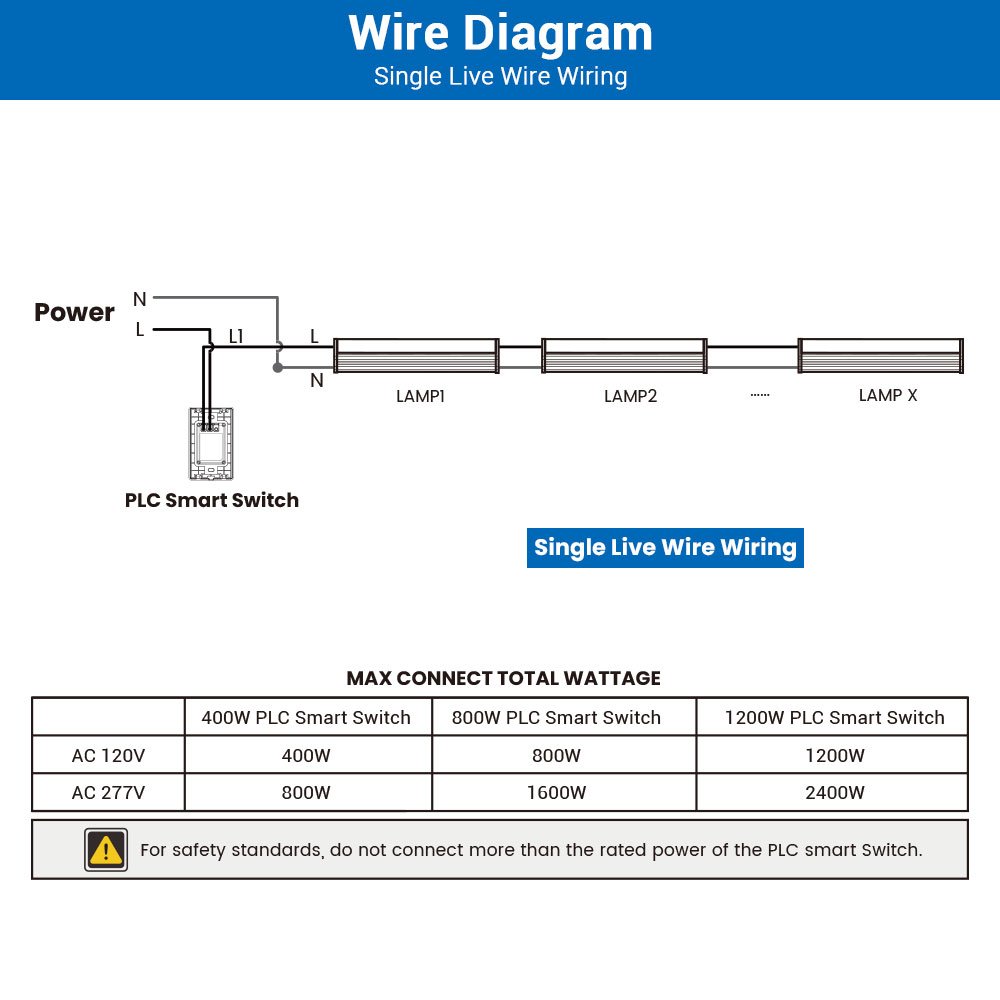

  • Wiring: Single Pole
  • Rating: 120–277V AC 50/60Hz
  • Control: Touch-Tone
  • Maximum Load: ≤400W | ≤800W | ≤1200W
  • Wire Wiring: Neutral / Single Live
  • Dimensions: 2.76″ x 4.53″ x 1.43″
  • Material: PC (Flame Retardant Material)
  • Working Temperature: -20℃ to 40℃
📄 Specs Sheet
