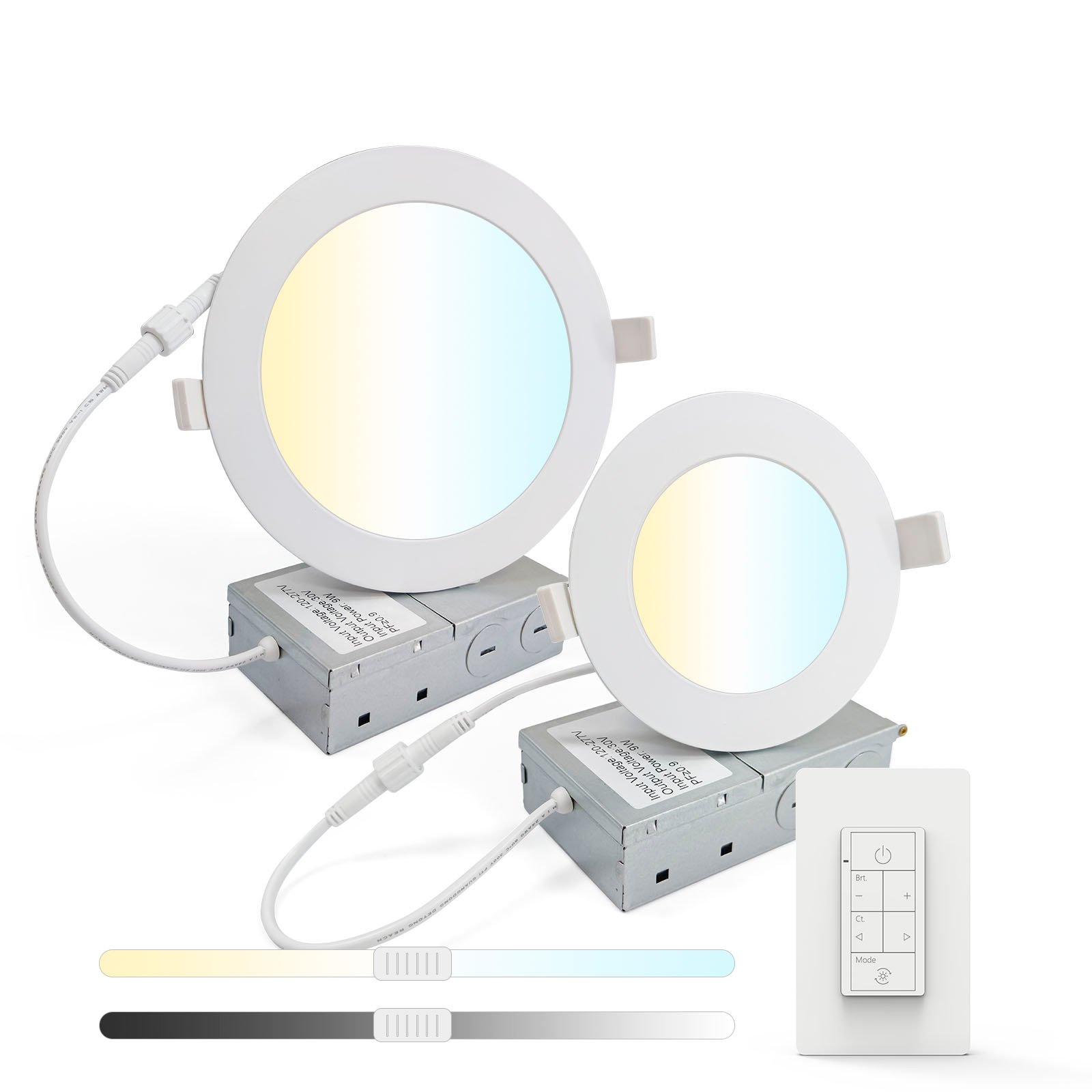

LED Recessed Ceiling Slim DownLight with Junction Box | 4” | 6” | 85-90lm/W | CCT 2700K-6500K smooth adjustable | Wattage 0%-100% Adjustable

The LED Recessed Ceiling Light with Junction Box is an ultra-thin recessed downlight for quick, simple, and housing-free installations. Its low-profile design makes it the ideal solution for new construction or remodeling projects. No housing can is required, making this light ideal for shallow ceiling plenums. It can adjust 2700~6500K color temperature by PLC Smart Switch, and you also can switch night light mode to maintain 5% brightness and 2700K color, leisure mode to maintain 50% brightness and 3500K color, work mode to maintain 100% brightness and 5000K, by the PLC Smart Switch. It ideal for creating a romantic or relaxed ambiance. It also has a memory function, so you don’t need to repeatedly set your favorite color temperature. Smart led ceiling light fixture is dimmable from 0%~100% Through the PLC Smart Switch. The lights apply widely in basements, Kitchens, Hallways, bedrooms, bathrooms and so on.

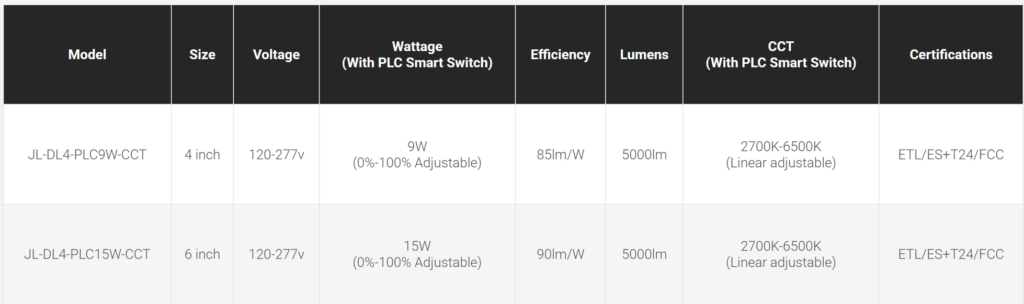

  • Wattage: 4″: 9W | 6″: 15W (0%-100% Adjustable with PLC Smart switch)
  • CCT: 4500K (2700K–6500K smoothly adjustable with PLC Smart switch)
  • Efficiency: 85–90 lm/W
  • Input Voltage: 120–277V AC
  • Frequency Range: 50/60Hz
  • CRI: >80
  • PF: >0.9
  • THD: ≤20%
  • Warranty: 5 Years

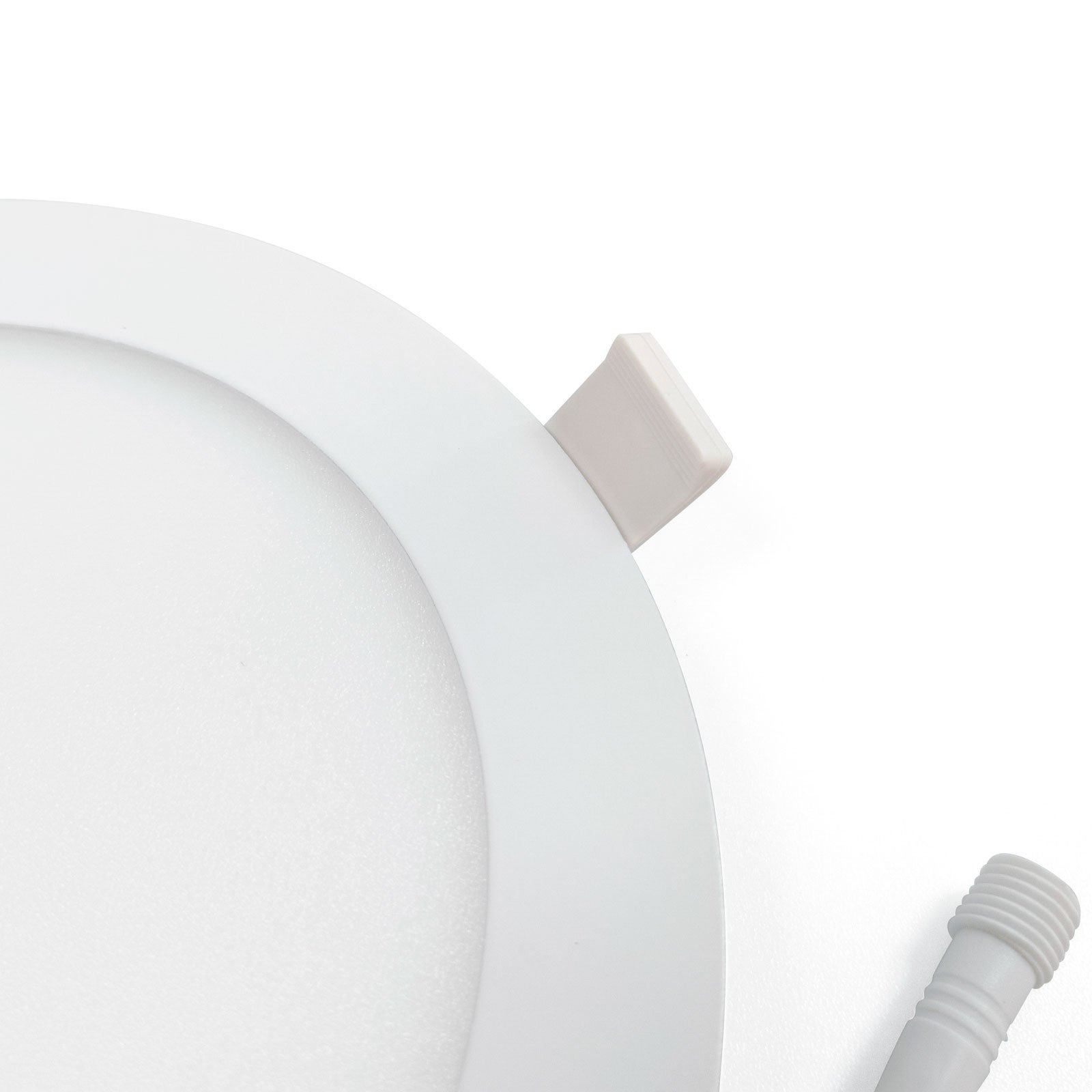

  • CONSTRUCTION: Durable solid frame, prefabricated paint with matte white finish. Slim profile design. Integrated T-Bar mounting clips built into the fixture. Easy installation. Ultra Thin LED Recessed Ceiling Light with Junction Box.
  • ELECTRICAL: Available as 120–277V input.
  • Excellent Performance: Saves 79.2% of energy consumption.

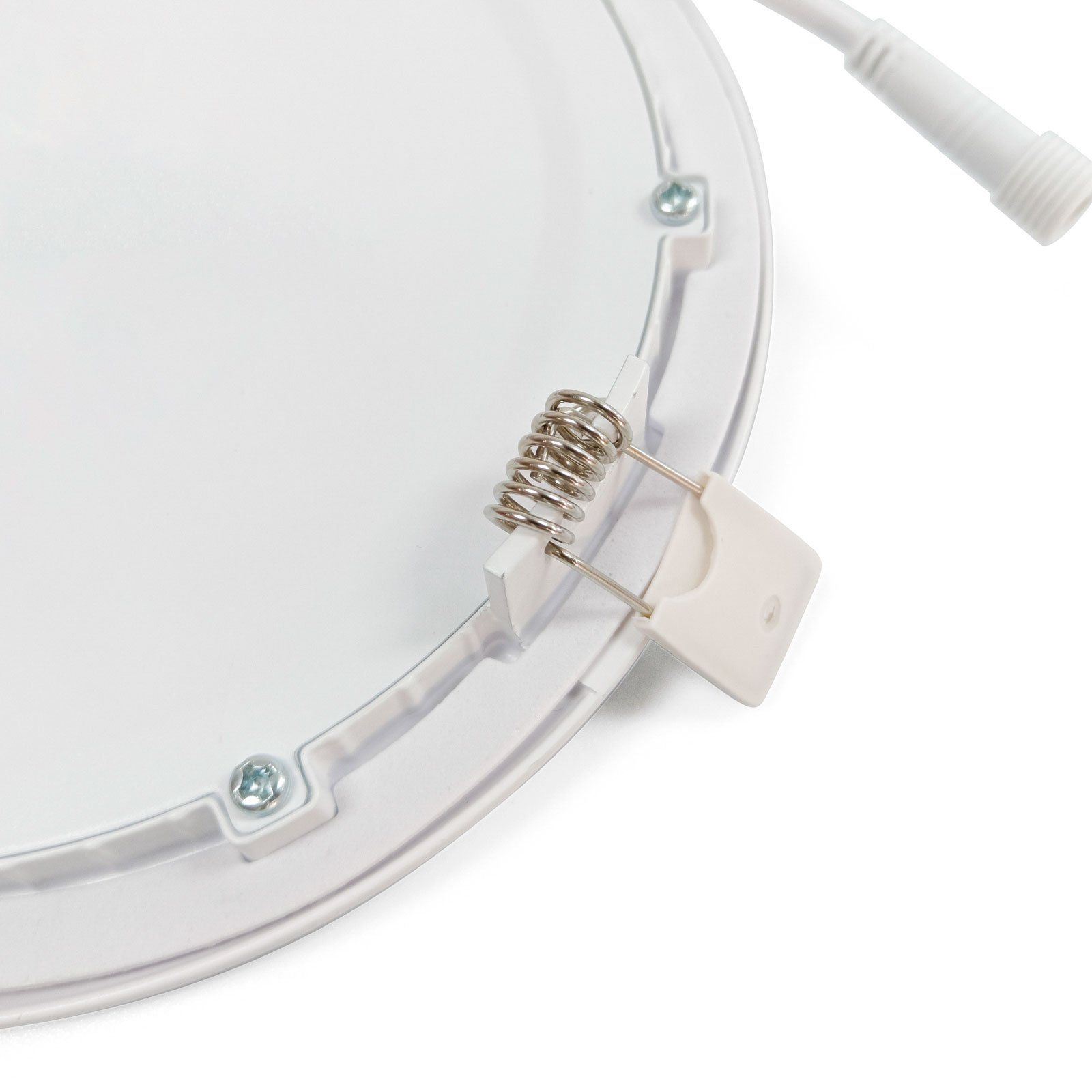

  • Simple Installation: Connect the provided Junction Box to the light using male/female cable and use the spring clip to fix it on the ceiling—hassle free, install in seconds. Recessed can is no longer a limitation for your choice.
  • Applications: Widely used in basements, kitchens, hallways, bedrooms, bathrooms, and more.
  • PLC SMART SWITCH: Control the lamp on/off, brightness (0%–100%), color temperature (2700K–6500K), and custom lighting mode.
  • LISTING: ETL / ES+T24 / FCC.
  • WARRANTY: 5 Years Limited Warranty, Rated for 50,000 hours.
  • Size: 4” | 6″
  • Wattage: 4”: 9W | 6”: 15W (0%–100% Adjustable with PLC Smart switch)
  • CCT: 4500K (2700K–6500K smoothly adjustable with PLC Smart switch)
  • Efficiency: 85–90 lm/W
  • Input Voltage: 120–277V AC
  • Frequency Range: 50/60Hz
  • CRI: >80
  • PF: >0.9
  • THD: ≤20%
  • Lifetime: 50,000 hours
  • Lumens: 765 lm | 1350 lm
  • Base Type: Spring Install
  • Certifications: ETL / ES+T24 / FCC
  • IP Rating: IP 40
  • Warranty: 5 Years
  • Working Temperature: -4°F to 113°F (-20°C to 45°C)
  • Model: PLC Smart Switch – JL-PLC400W-120 | JL-PLC800W-120 | JL-PLC1200W-120

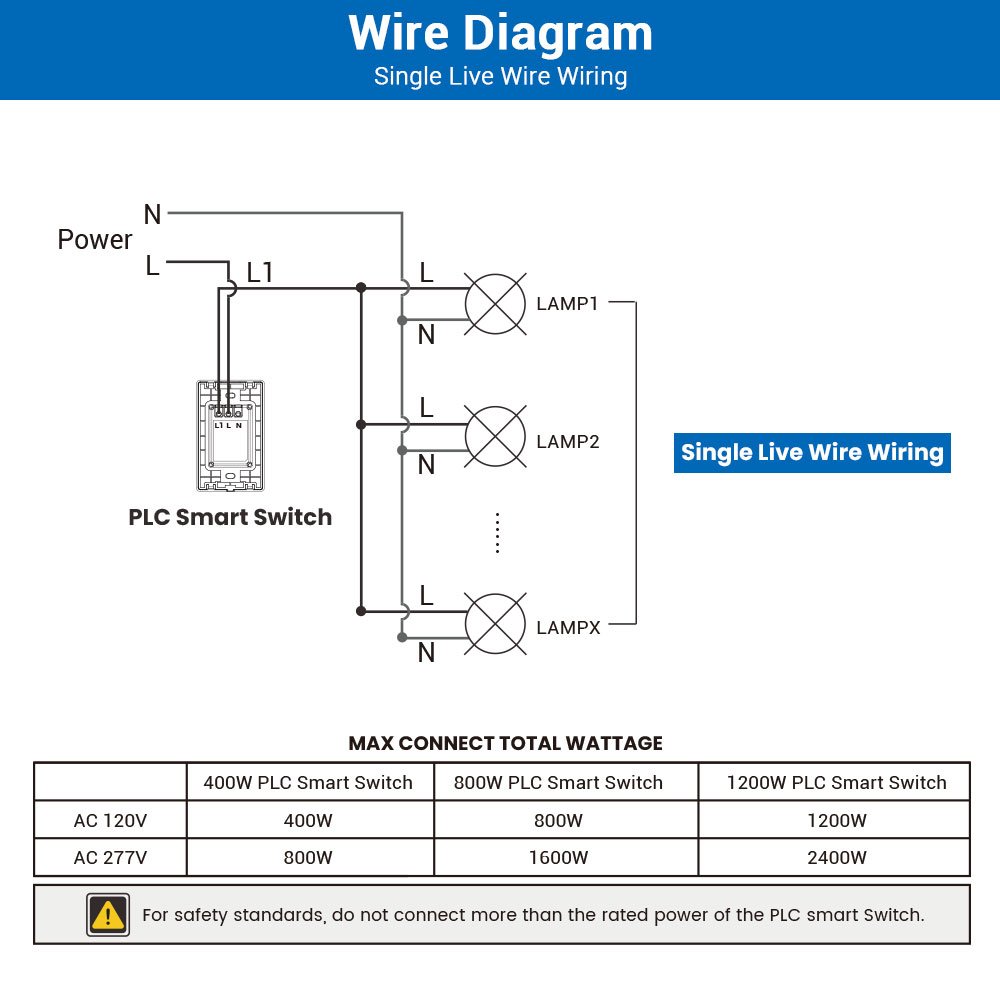

  • Wiring: Single Pole
  • Rating: 120–277V AC 50/60Hz
  • Control: Touch-Tone
  • Maximum Load: ≤400W | ≤800W | ≤1200W
  • Wire Wiring: Neutral / Single Live

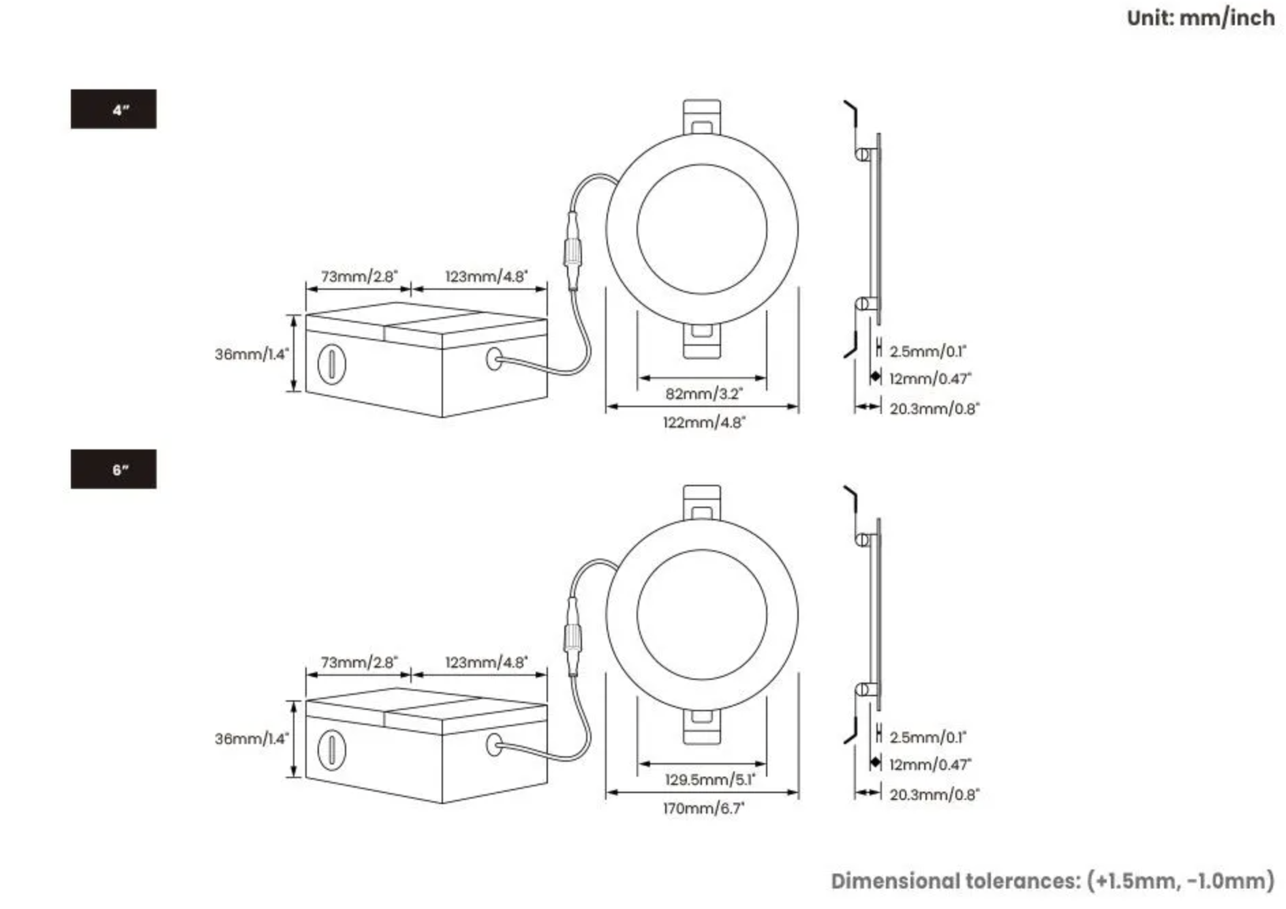

  • Dimensions: 2.76″ x 4.53″ x 1.43″
  • Material: PC (Flame Retardant Material)
  • Working Temperature: -20℃ ~ 40℃
📄 Specs Sheet
