LED Linear Strip Light | 4FT 8FT | M50W M100W | Wattage Selectable | CCT Selectable | 130-150lm/W | 0-10V Dimming

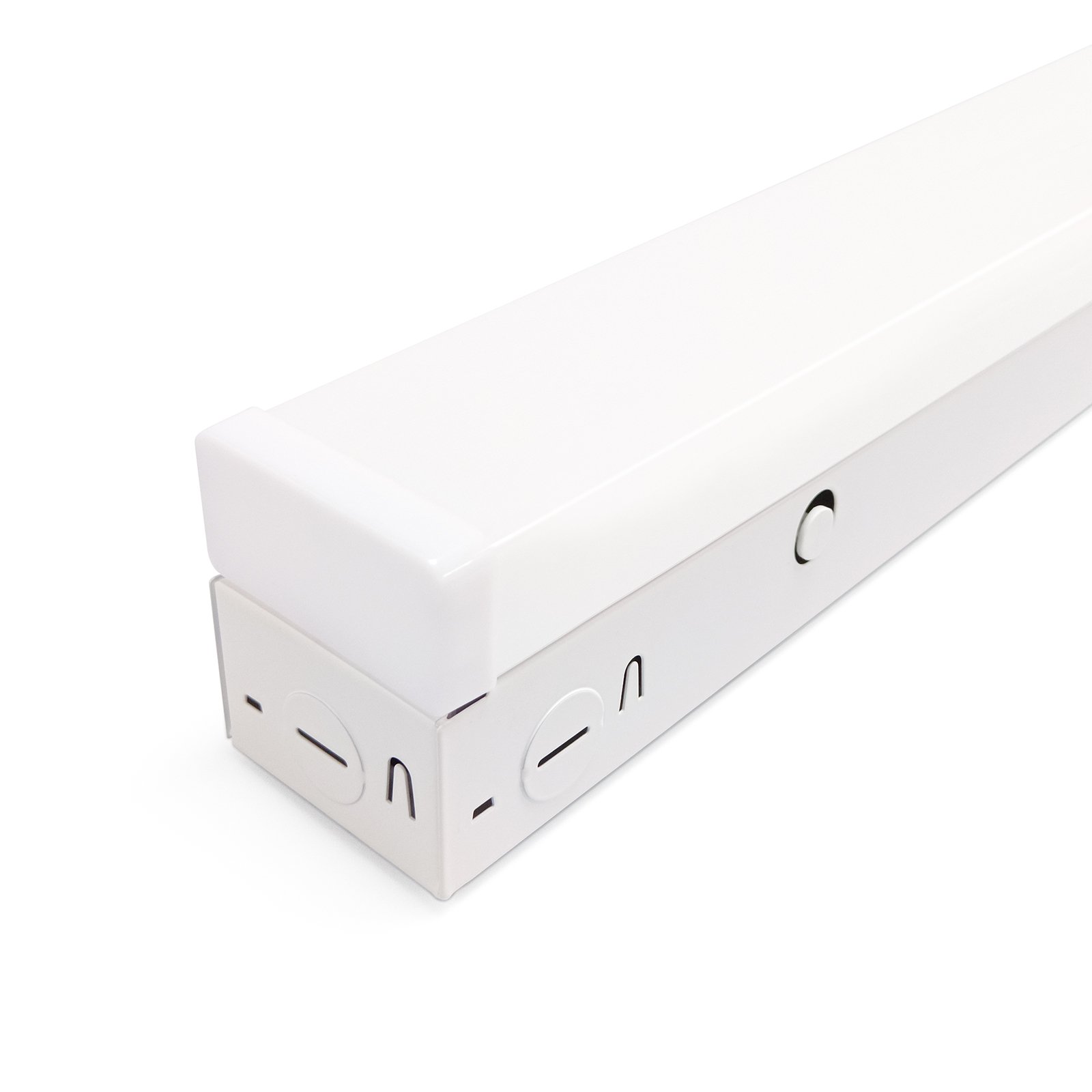

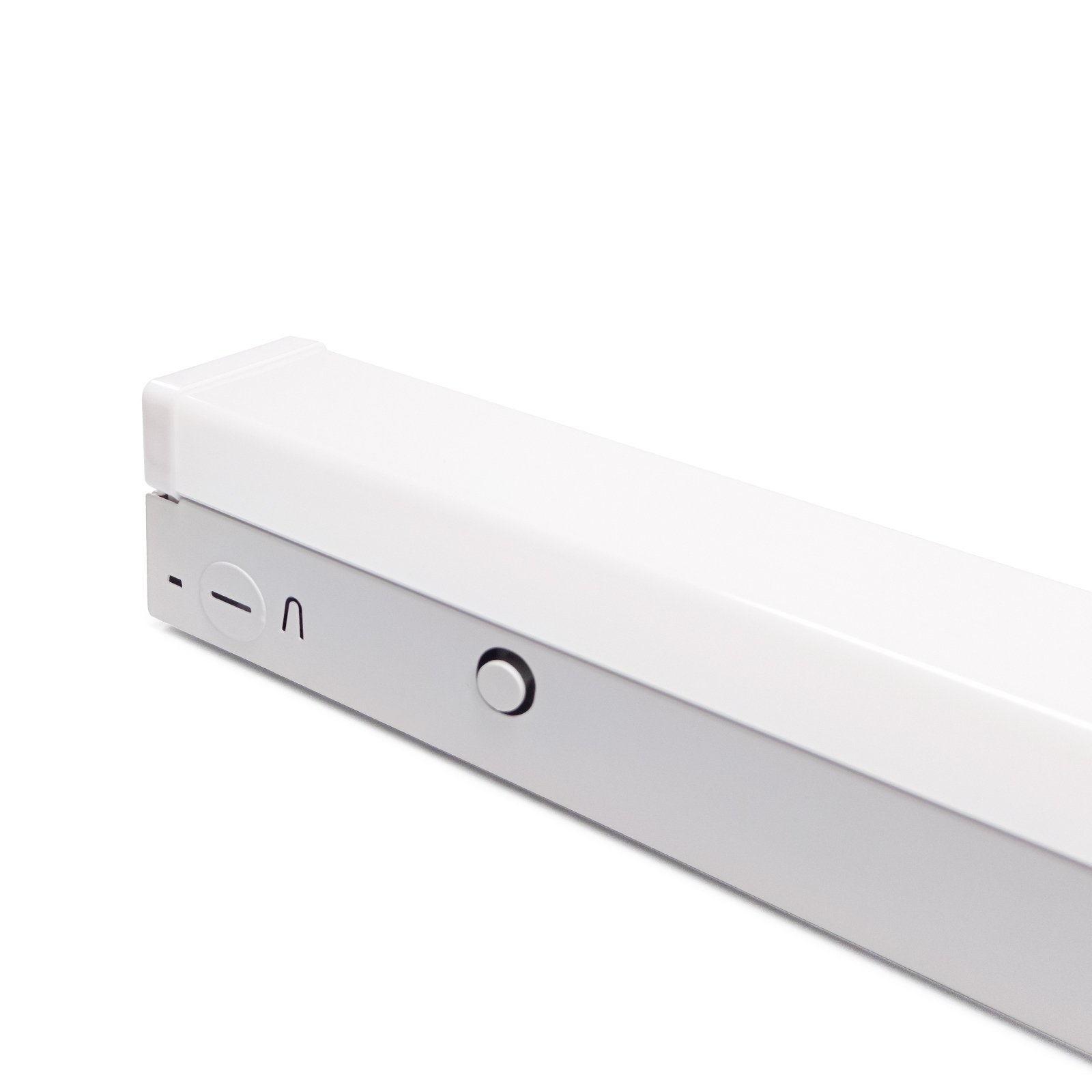

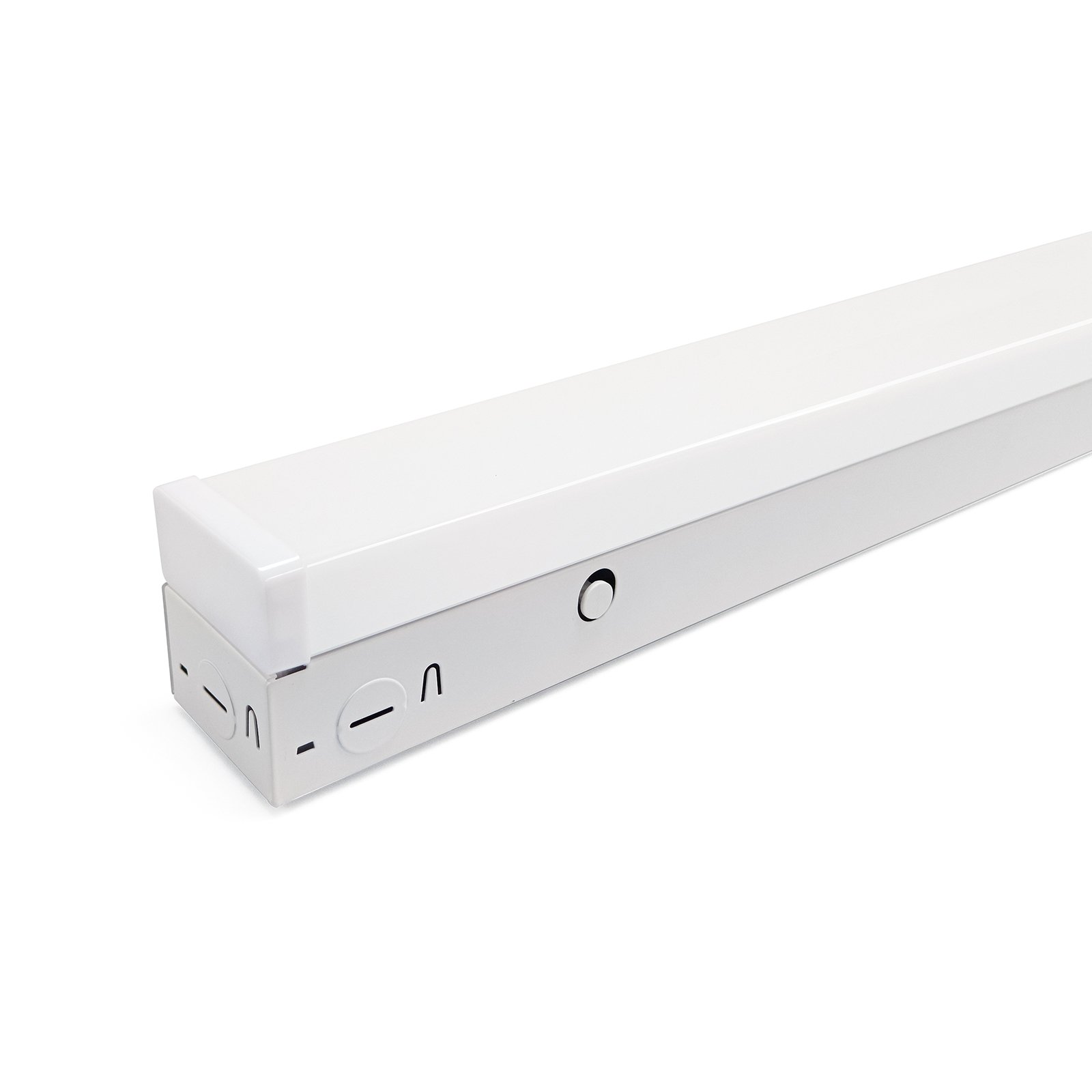

An all-in-1, low-profile, linear and narrow wraparound. Comes with decorative endcaps with integrated link ability and a frosted diffuser providing widespread, uniform illumination. Ideal for many applications including corridors, kitchens, breakrooms, utility work areas and stairways.
- Length: 4FT, 8FT

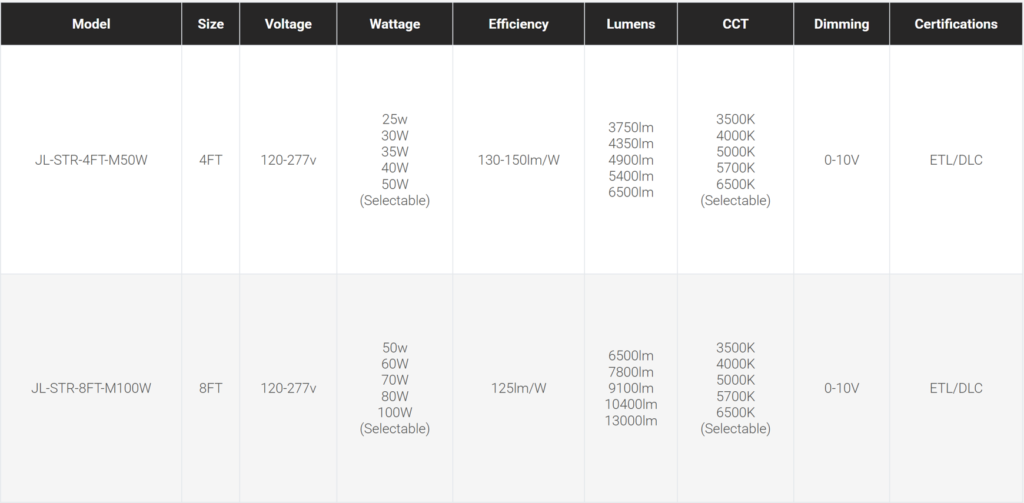

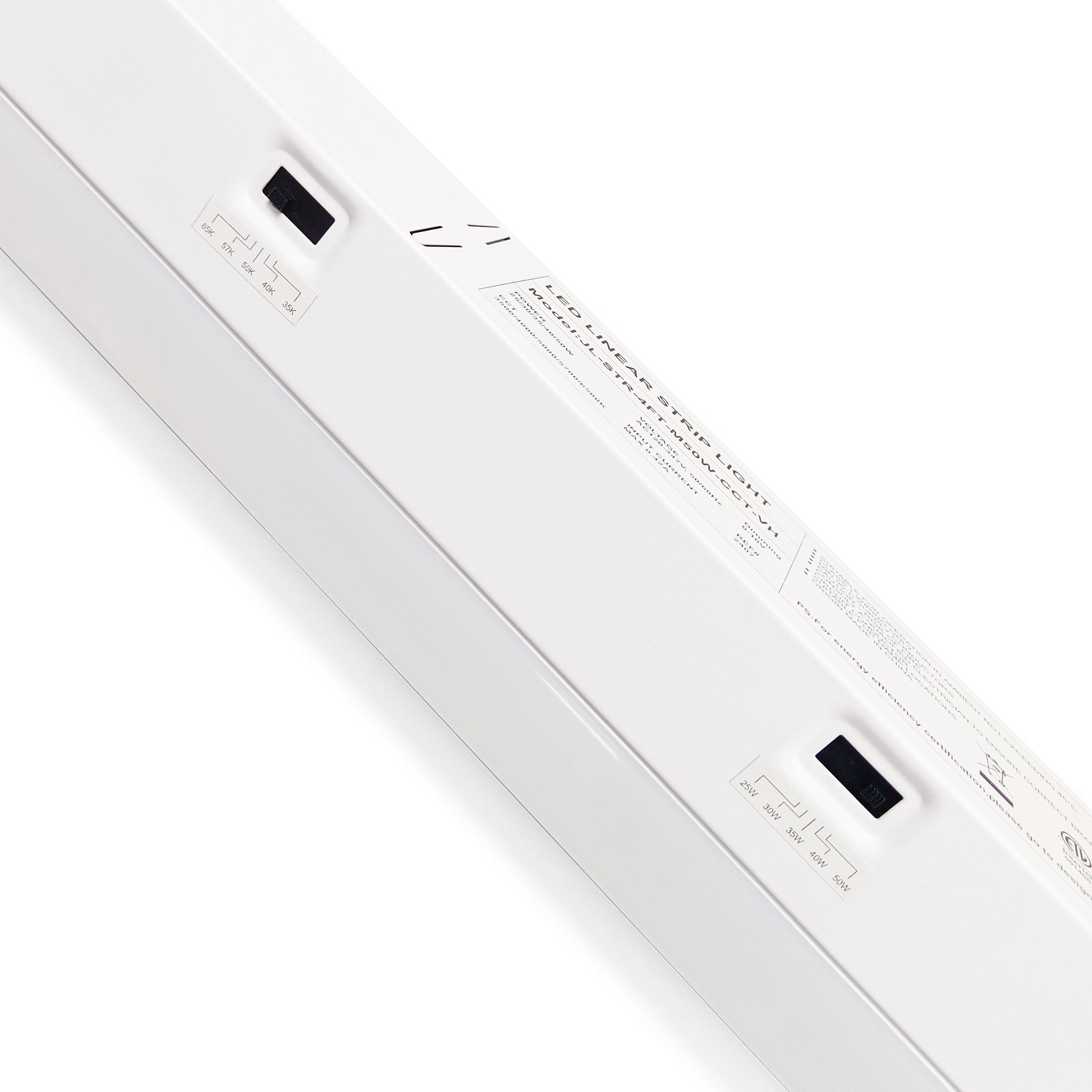

- Wattage Selectable: 4FT: 25W / 30W / 35W / 40W / 50W, 8FT: 50W / 60W / 70W / 80W / 100W
- 5CCT Selectable: 3500K / 4000K / 5000K / 5700K / 6500K
- Efficiency: 130–150 lm/W
- IP Rating: IP20
- Warranty: 5 Years
- CONSTRUCTION: Metal Housing | White Frosted Cover | Plastic End Caps
- ELECTRICAL: Long-life LEDs with high-efficiency driver. Input Voltage: 120–277V

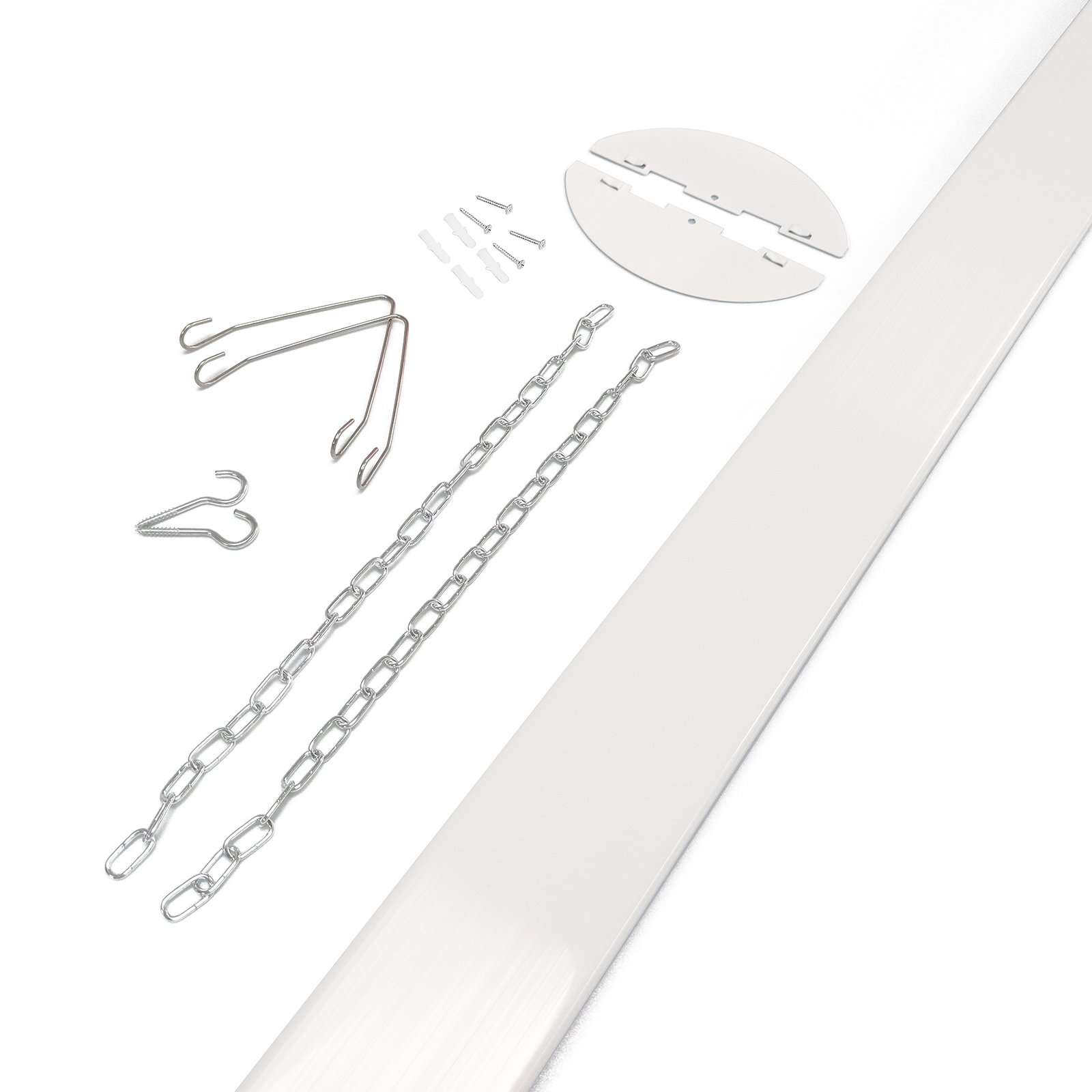

- INSTALLATION: Surface Mounting or V-Hook/Chain Mounting. Linkable: 4FT (up to 10 pcs), 8FT (up to 5 pcs)
- APPLICATIONS: Warehouse, Manufacturing Facilities, Storage, Retail, Aisles. Suitable for dry and damp indoor locations. Working temperature: -20°C to +45°C (-4°F to +113°F)
- DIMMING: Continuous dimming (0–10V)
- LISTING: ETL, DLC, FCC
- WARRANTY: 5 Years Limited Warranty, Rated for 50,000 hours

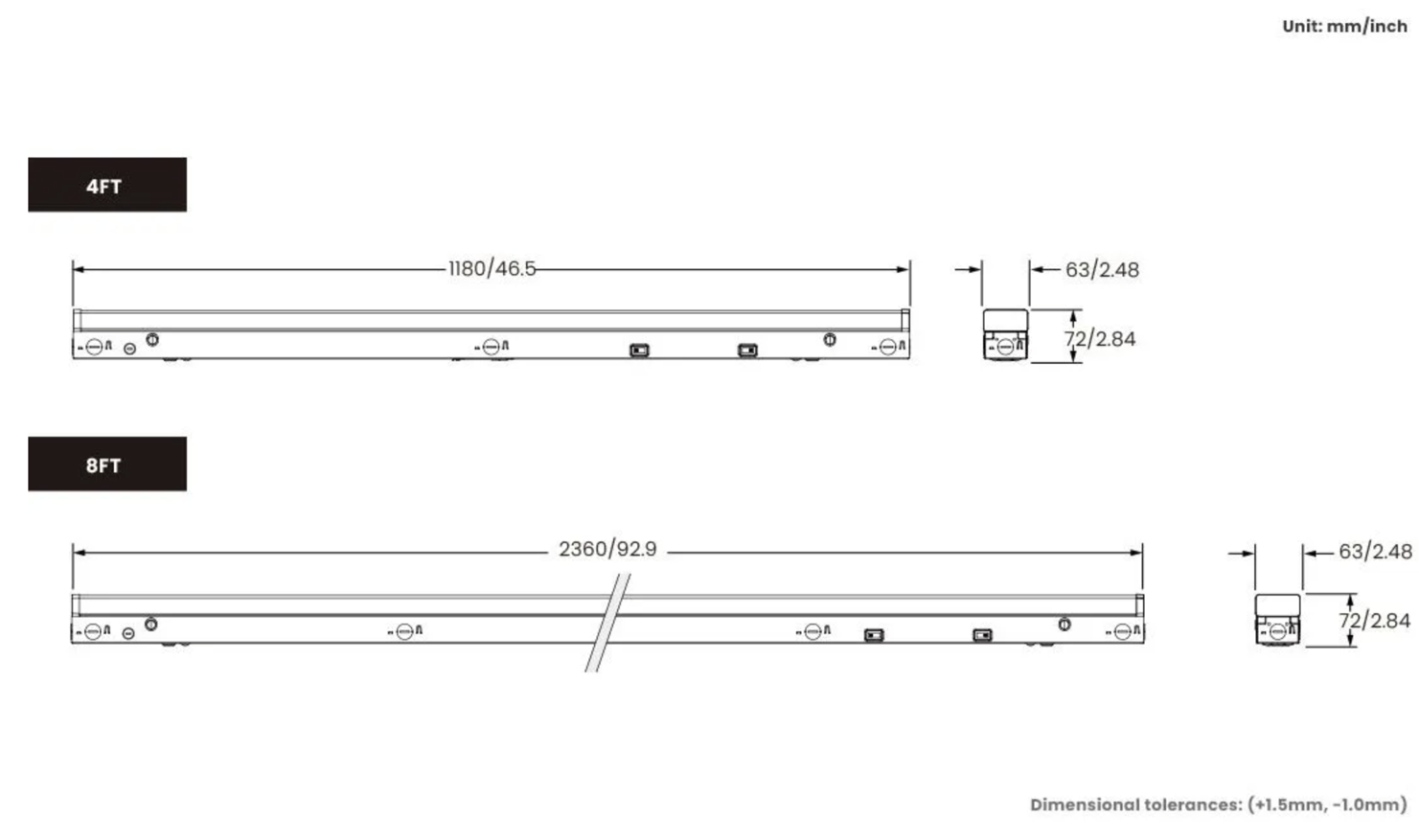

- Size: 4FT (46.5” x 2.48” x 2.84” / 1180mm x 63mm x 72mm), 8FT (92.9” x 2.48” x 2.84” / 2360mm x 63mm x 72mm)
- 5Wattage Selectable: 4FT: 25W/30W/35W/40W/50W, 8FT: 50W/60W/70W/80W/100W
- 5CCT Selectable: 3500K/4000K/5000K/5700K/6500K
- Efficiency: 130lm/W
- Input Voltage: 120–277V AC
- Frequency Range: 50/60Hz
- Installation: Surface Mounting or V-Hook/Chain Mounting
- CRI: >80
- Power Factor (PF): >0.95
- Total Harmonic Distortion (THD): ≤20%
- Lifetime: 50,000 hours
- Lumens: 4FT: 3750–6500lm, 8FT: 6500–13000lm
- Beam Angle: 120°
- Certifications: ETL, DLC, FCC
- IP Rating: IP20
- Warranty: 5 Years
- Working Temperature: -4°F to +113°F (-20°C to +45°C)
