PLC Back-lit LED Panel light | 1’x4’ | 2’x2’ | 2’x4’ | 125lm/W | CCT 2700K-6500K Linear adjustable | Wattage 0%-100% Adjustable

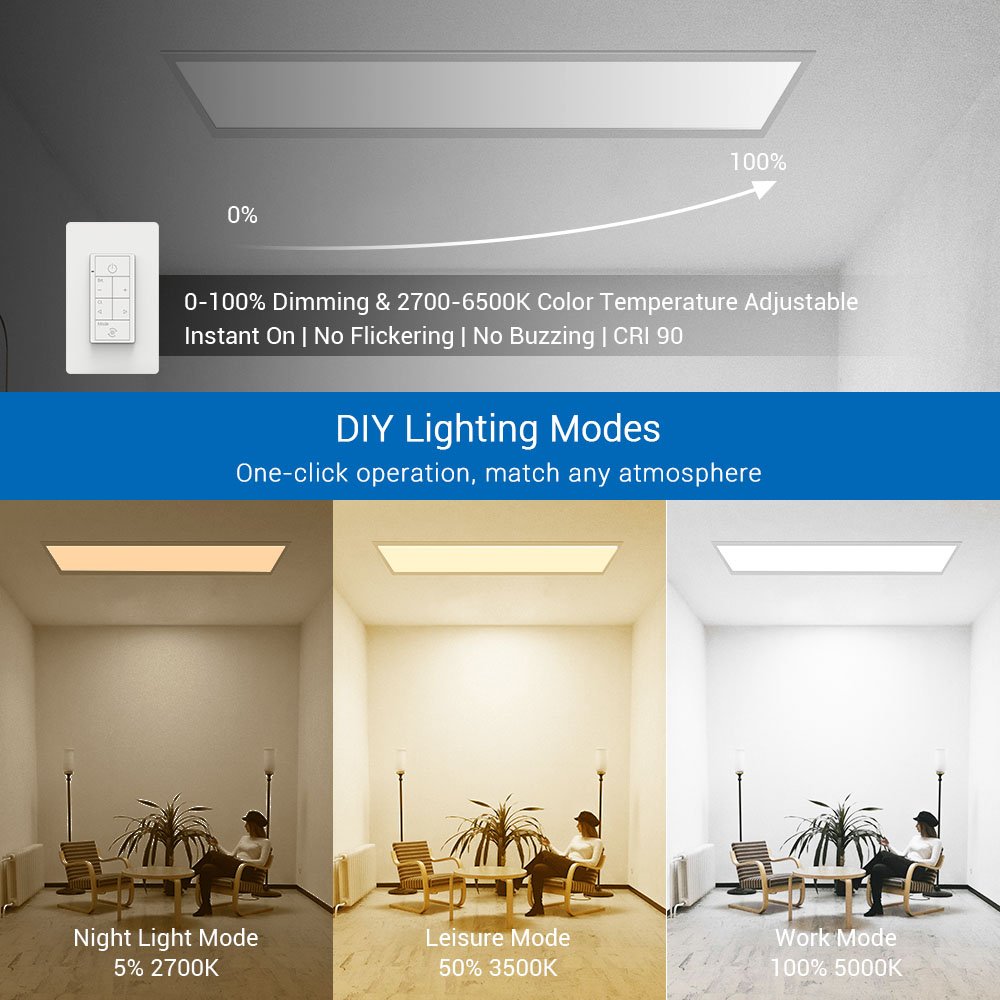

This LED Panel light with back-lit is designed with high-efficiency LED chips which can provide high-quality light and reduce 85% of the electricity bill. It can adjust 2700~6500K color temperature by PLC Smart Switch, and you also can switch night light mode to maintain 5% brightness and 2700K color, leisure mode to maintain 50% brightness and 3500K color, work mode to maintain 100% brightness and 5000K, by the PLC Smart Switch. It ideal for creating a romantic or relaxed ambiance. It also has a memory function, so you don’t need to repeatedly set your favorite color temperature. Smart led ceiling light fixture is dimmable from 0%~100% Through the PLC Smart Switch.Soft and uniform light.Freely control the light brightness to relieve eye fatigue and save power. Suitable for different scenarios such as offices, basements, gyms, schools, hospitals, garages, conference rooms, etc.

  • Wattage: 1’x4’: 40W | 2’x2’: 40W | 2’x4’: 72W (0%-100% Adjustable with PLC Smart Switch)
  • CCT: 4500K (2700K–6500K smoothly adjustable with PLC Smart Switch)
  • Efficiency: 125–130 lm/W
  • Input Voltage: 120–277V AC
  • Frequency Range: 50/60Hz
  • CRI: >80
  • Power Factor (PF): >0.9
  • THD: <=20%
  • IP Rating: IP40
  • Warranty: 5 Years
  • CONSTRUCTION: Durable solid frame with prefabricated matte white finish. Slim profile design. Integrated T-Bar mounting clips built onto the fixture for easy installation.
  • ELECTRICAL: Built with a high-quality driver that supports Universal Voltage (120V–277V) and long-lasting, high-efficiency LED packages.
  • DRIVER: Mounted on the back or side of the panel to avoid damage during shipping.
  • OPTICAL SYSTEM: Back-lit optics provide uniform light output. Diffuser lens reduces glare and improves energy efficiency.
  • ENERGY SAVINGS: Achieves over 50% energy savings compared to traditional fluorescent fixtures. Low heat production reduces maintenance and operational costs.
  • PLC SMART SWITCH: Controls power on/off, brightness (0%–100%), color temperature (2700K–6500K), and custom lighting modes.
  • LISTING: ETL, DLC, FCC, RoHS, CE
  • WARRANTY: 5 Years Limited Warranty, Rated for 50,000 hours

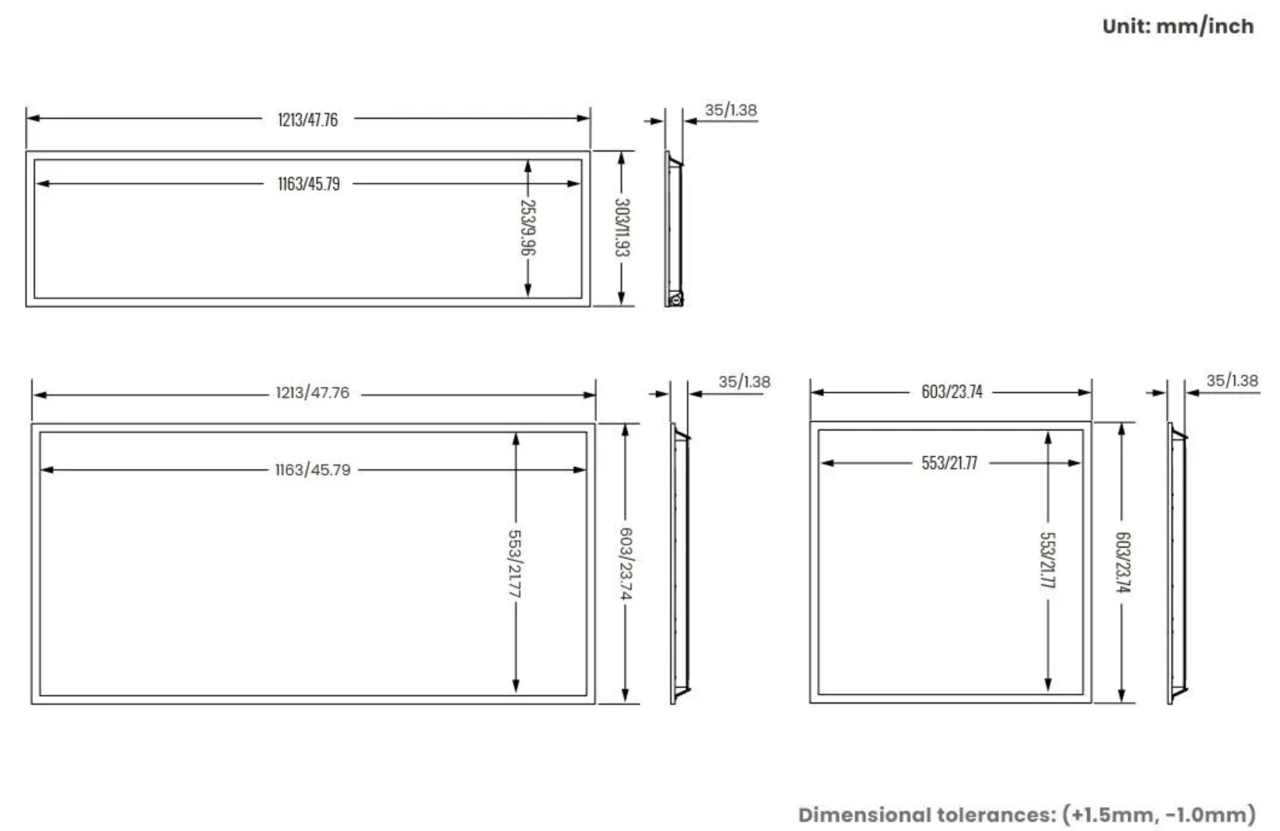

  • SIZE: 1’x4’ (47.76” x 11.93” x 1.38” / 1213mm x 303mm x 35mm) | 2’x2’ (23.74” x 23.74” x 1.38” / 603mm x 603mm x 35mm) | 2’x4’ (47.76” x 23.74” x 1.38” / 1213mm x 603mm x 35mm)
  • WATTAGE: 1’x4’: 40W | 2’x2’: 40W | 2’x4’: 72W (0%–100% Adjustable with PLC Smart Switch)
  • CCT: 4500K (2700K–6500K Smoothly Adjustable with PLC Smart Switch)
  • EFFICIENCY: 125–130 lm/W
  • INPUT VOLTAGE: 120–277V AC
  • FREQUENCY RANGE: 50/60Hz
  • CRI: >80
  • POWER FACTOR (PF): >0.9
  • THD: ≤20%
  • LIFETIME: 50,000 hours
  • LUMENS: 5000–9000 lm
  • BEAM ANGLE: 120°
  • CERTIFICATIONS: ETL, DLC, RoHS, FCC, CE
  • MODEL: JL-PLC400W-120 | JL-PLC800W-120 | JL-PLC1200W-120

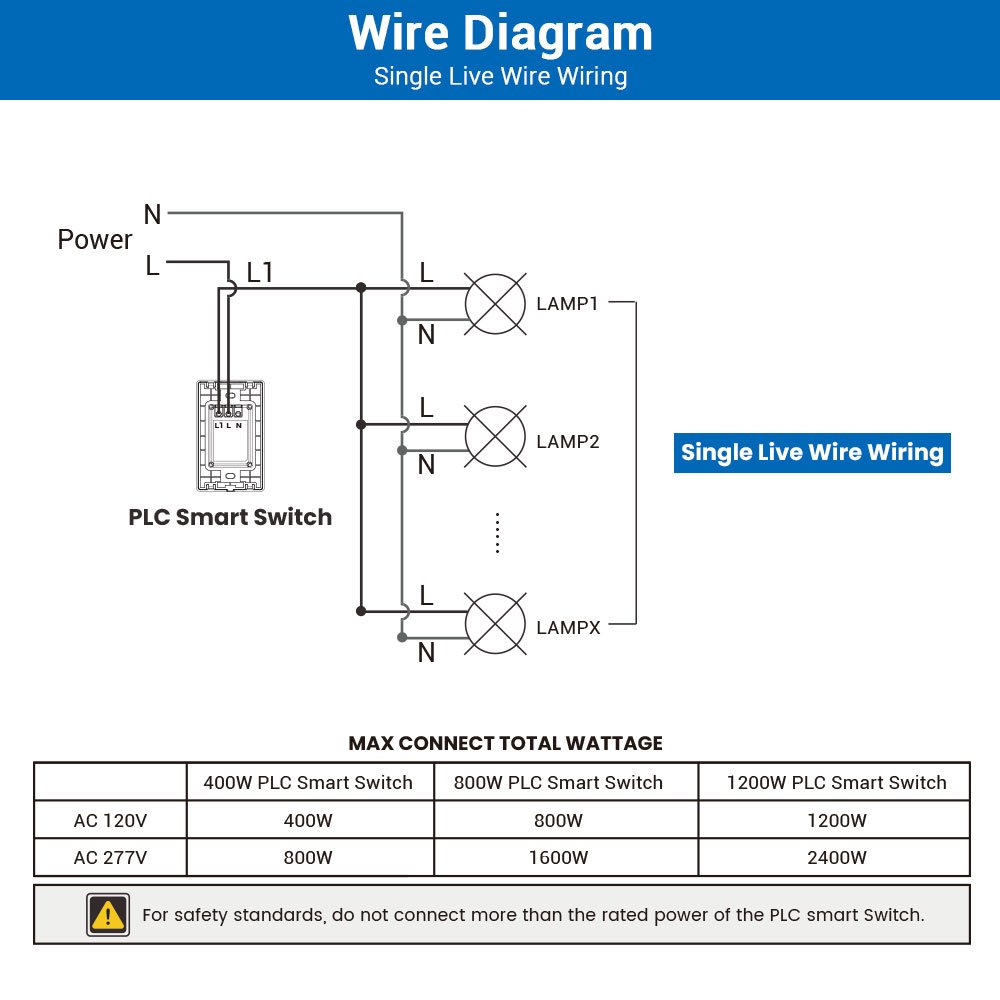

  • WIRING: Single Pole
  • RATING: 120–277V AC, 50/60Hz
  • CONTROL: Touch-Tone
  • MAXIMUM LOAD: ≤400W | ≤800W | ≤1200W
  • WIRE CONFIGURATION: Neutral / Single Live
  • DIMENSIONS: 2.76″ x 4.53″ x 1.43″
  • MATERIAL: PC (Flame Retardant Material)
  • WORKING TEMPERATURE: -20℃ to 40℃
📄 Specs Sheet
